FL1-10
Fuse-links are intended for use in fuses F1A-10/..., F1B-10/..., which are used to protect voltage transformers of types IVS1F..., IVD1F..., PVD1F..., in networks with the highest voltage of electrical equipment up to 12 kV.
Fuse-links FL1-10/... are current-limiting.

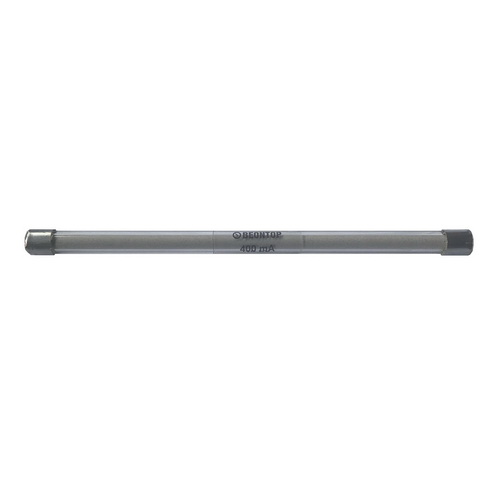

An example of a conventional designation of a Fuse-links when ordering and in the documentation of another manufacturer. Fuse-link FL1-10 for a rated current of 400 mA.
Fuse-link FL1-10/0.4.
Fuse-links are intended for use in fuses F1A-10/..., F1B-10/..., which are used to protect voltage transformers of types IVS1F..., IVD1F..., PVD1F..., in networks with the highest voltage of electrical equipment up to 12 kV.
Fuse-links FL1-10/... are current-limiting.
An example of a conventional designation of a Fuse-links when ordering and in the documentation of another manufacturer. Fuse-link FL1-10 for a rated current of 400 mA.
Fuse-link FL1-10/0.4.
- Parameter name Parameter value
- Highest voltage for equipment, Um, [kV] 12
- Rated frequency, Fn, [Hz] 50
- Rated current, In, [mA] / DC resistance, R, [Ω] 400/10,5 ± 0,7; 800/5,5 ± 0,5; 1200/3,7 ± 0,4
